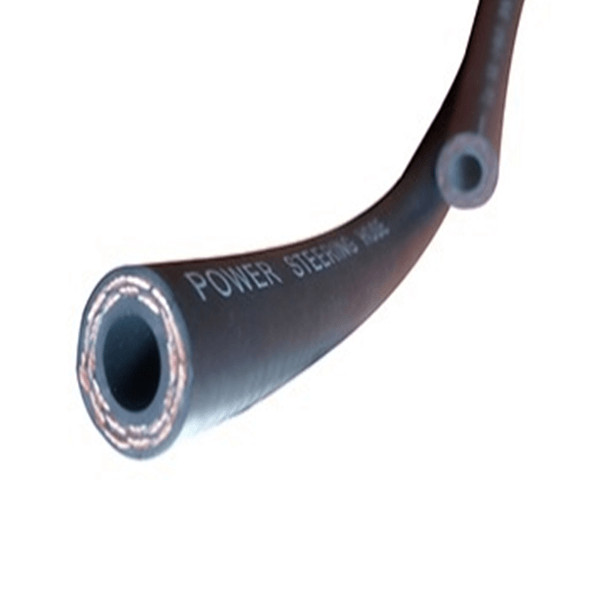

SAE J188 Power Steering Hose

SAE J188 Power Steering Hose

Tube: oil resistance synthetic rubber (CSM)
Reinforcement: High tensile braid of fibers
Cover: Synthetic rubber with excellent aging resistance and weatherability (CPE/CSM),Smooth surface and cloth wrapped.
Temperature:-40°C~+125°C (max 135°C)
Standards: SAE J188, MS263-53

SAE J188 Power Steering Hose

The hose can bear high pressure with good performance of pulse resistance, oil resistance, low turbidity flexing resistance, and hot air resistance. And it has the performance of anti-burst, high tensile strength, and the change rate of the tube length is small after being pressed, and it can provide reliable, safe power steering performance in any circumstances, to ensure the vehicle operate easily and safely.

Designed to transfer air, oil, water and refined fuels under cold and freezing working environment, the temperature range is from -40°C to +125°C (max 135°C). It performs well with flexible softness under the low temperature.

SAE J188 Power Steering Hose use to the vehicles of the power steering system and pressure transfer in the power steering assembly.

Code Specification ID OD Wall Thickness Burst Pressure Working Pressure
inch mm mm mm Mpa Mpa
8004001 3/8” 9.5±0.3 20±0.5 5.1 >42 >10.3
8004002 3/8” 9.5±0.3 18.5±0.5 4.5 >42 >10.3
