Project Description

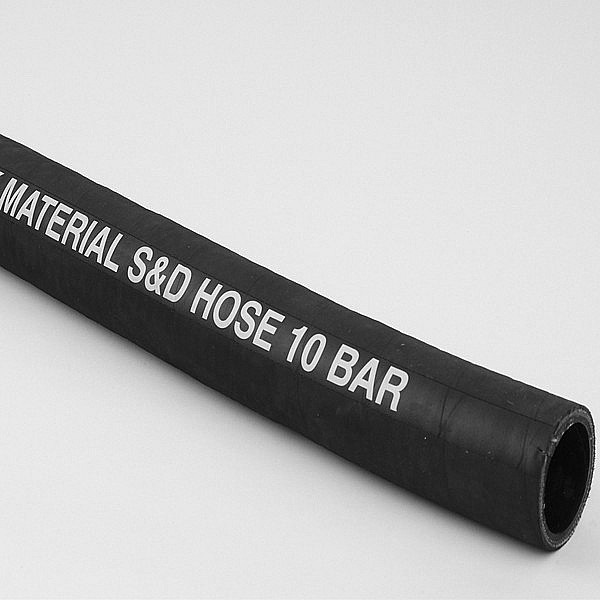

Bulk Material Suction and discharge hose

Bulk Material Suction and Delivery Hose

Hose Type: Mandrel Built
Tube: Black color of antistatic NR blend compound (high abrasion resistance)
Cover: Black color of NO Blend Compound(Abrasion and weather resistance)
Reinforcement: Multiply layers of high tensile synthetic cord supported with helix wire with anti static wire
Temperature:-20’C to +80’C
Surface: Wrapped Surface
Tolerance: ISO 1307

Material handling hose is designed to transfer bulk material, such as cement, sand, lime, fertilizers, etc. Multiply layers of high tensile synthetic cord supported with helix wire with anti static wire. Service life may vary depending on the operating conditions, hours of use, and the product being conveyed. The cover of abrasive material hose is abrasion, age and weather resistant.

JYM – Specializes in manufacturing bulk material suction and discharge hose

APPLICATIONS:
Suitable for the transport of coarse, rugged, abrasive products like rocks, chips, slurry, mud, pellets, etc. Heavy duty and anti-static.

Code ID(mm) OD(mm) W.P(Bar) B.P(Bar) Max.Length(M)
5003001 38 52 10 30 40
5003002 51 67 10 30 40
5003003 64 84 10 30 40
5003004 76 97 10 30 40
5003005 89 110 10 30 40
5003006 102 124 10 30 40
5003007 127 150 10 30 40
5003008 152 176 10 30 40

Material

Most of our rubber material imported from foreign countries( South Korea LG, Malaysia) Some bought from domestic market such as Sinopec China.

Industrial hose material

Rubber hose material

Production Process

Our Rigid Mandrel built production line can manufacture 60M length hoses.

Mandrel Built Hoes production line

Equipment

Advanced Italy VP production lines

Extruded long length hose production line

Mandrel industrial hose production line

R&D Center

Our factory has strong quality control team, we set up advanced laboratory before the mass production, we test each batch of raw material. After the production, we test each hose to guarantee a 100% qualification. Each hose tested 2 times of working pressure before packing.

Laboratory

JYM Laboratory

Warehouse

JYM Industrial hose warehouse

* For more information of JYM products, please contact us. If you would like a quotation or further information, please fill in the form below and we will reply to you within 1 working day.
