Project Description

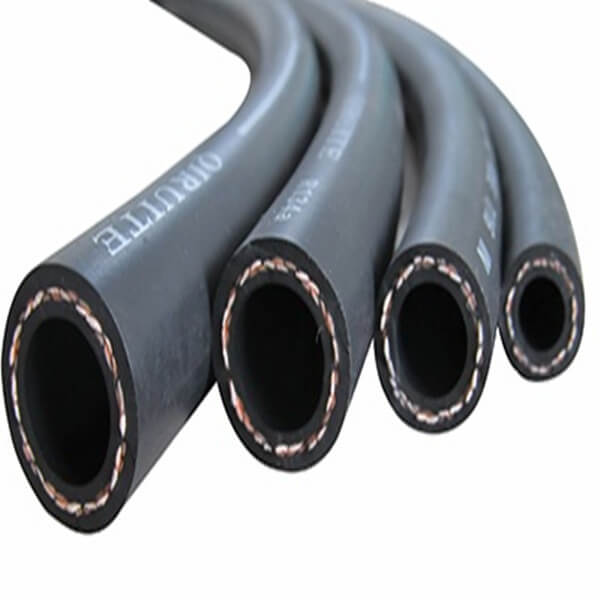

SAE J2064 Type C Air Conditioning Hose

SAE J2064 Type C Air Conditioning Hose

Tube: CSM/EPDM Barrier: Nylon alloy
Buffer:EPDM/NBR Reinforcement: PVA
Cover: EPDM
Application temperature: -40°C ~ +135°C
Length: 50m or as requested
Certificate: ISO/TS 16949:2009
Refrigerant applied: R12,R134a
Features: Pulse resistance, aging resistance, ozone resistance, shock resistance, and low permeability.
Application: Air Conditioning Hose is widely used in the air conditioning system of vehicles, cars, and domestic air conditioning

Automotive Air Conditioning Hose SAE J2064 Standard Type C

Low-medium pressure lines in extreme temperature conditions (foundries, com-pressors, hydraulics within engine compartments, etc.)
Mineral oils, glycols and polyglycols, transmission fluids, air with oil vapours, mineral oils in aqueous emulsion.

Air Conditioning Hose (A10)

ItemSpecificationI.D.O.D.Working PressureBurst Pressure
CodeinchmmmmMpaMpa
80020015/16”8±0.415.2±0.53.523
80020027/16”11.5±0.418.4±0.53.522
80020031/2”13±0.421±0.53.520
80020045/8”15.5±0.423±0.53.521

R134a Air Conditioning Hose (A20)

ItemSpecificationI.D.O.D.Working PressureBurst Pressure
CodeinchmmmmMpaMpa
80020055/16”8±0.419±0.53.521
800200613/32”10±0.423±0.53.521
80020071/2”13±0.425.4±0.53.522
80020085/8”16±0.428.6±0.53.518

Material

Most of our rubber material imported from foreign countries( South Korea LG, Malaysia) Some bought from domestic market such as Sinopec China.

Industrial hose material

Rubber hose material

Production Process

Our Rigid Mandrel built production line can manufacture 60M length hoses.

Mandrel Built Hoes production line

Equipment

Advanced Italy VP production lines

Extruded long length hose production line

Mandrel industrial hose production line

R&D Center

Our factory has strong quality control team, we set up advanced laboratory before the mass production, we test each batch of raw material. After the production, we test each hose to guarantee a 100% qualification. Each hose tested 2 times of working pressure before packing.

Laboratory

JYM Laboratory

Warehouse

JYM Industrial hose warehouse
