Project Description

DIN EN856 4SP

Characteristics:

Application:Very high preesure application used for petroleum basedhydraulic fluids.
Tube:Oil resistant synthetic rubber.
Reinforcement:Four high tensile steel wire spiral layers.
Cover:Flame resistance synthetic rubber
Temp. range:-40°C to+100°C.

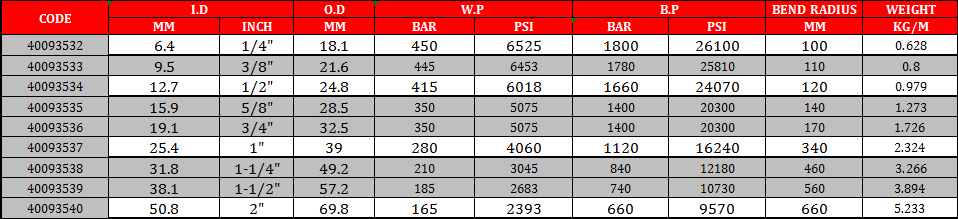

DIN EN856 4SP

Construction:

Application:Very high preesure application used for petroleum basedhydraulic fluids.
Tube:Oil resistant synthetic rubber.
Reinforcement:Four high tensile steel wire spiral layers.
Cover:Flame resistance synthetic rubber
Temp. range:-40°C to+100°C.

Material

Most of our rubber material imported from foreign countries( South Korea LG, Malaysia) Some bought from domestic market such as Sinopec China.

Industrial hose material

Rubber hose material

Production Process

Our Rigid Mandrel built production line can manufacture 60M length hoses.

Mandrel Built Hoes production line

Equipment

Advanced Italy VP production lines

Extruded long length hose production line

Mandrel industrial hose production line

R&D Center

Our factory has strong quality control team, we set up advanced laboratory before the mass production, we test each batch of raw material. After the production, we test each hose to guarantee a 100% qualification. Each hose tested 2 times of working pressure before packing.

Laboratory

JYM Laboratory

Warehouse

JYM Industrial hose warehouse

For any inquiry of JYM Hose, please kindly let us know. Our sales staffs will reply you as soon as possible in 24 hours.
