Project Description

JYM SAE J1401 Air Brake Hose

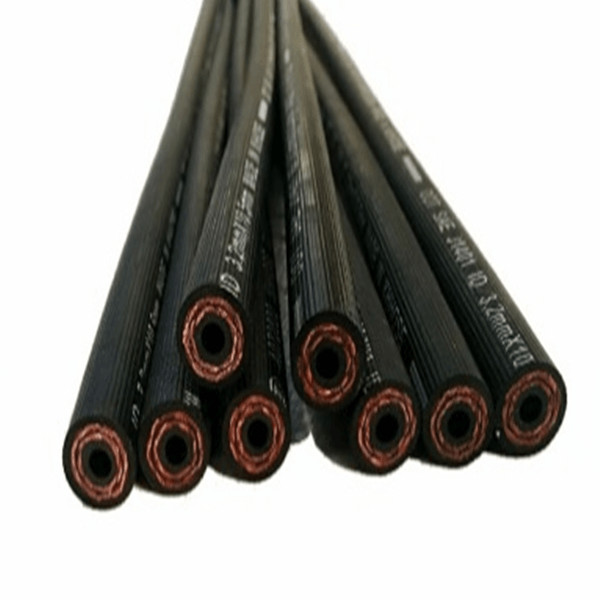

SAE J1401 Air Brake Hose

Sizes: 3/16″, 3/8″
Material
: EPDM,Carbon Steel
Fitting Coating: Yellow or White Zinc Plated
Standard: SAE J1401
Working temperature: -40 to 120°C
Burst pressure: >60MPa
Feature: Low inner cubage expansion, Resistance of heat and ozone, Low moisture permeation, whip and impuls

JYM, the leading manufacturer specialized in designing and manufacturing a wide range of Automotive hoses. JYM SAE J1401 Air Brake Hose designed for transmitting air pressure for compressors in mining industry, construction industry, ship building industry, shaft and plant.

Air Brake Hose is braided with high-quality, long-staple, manifold cotton threads, and have such very good performances as the following: good flexibiliby under pressure, ozone resistance, low-temperature resistance and high-temperature resistance, with stable, safe adn reliable braking effcets.

CodeSpecificationIDODWall ThicknessBurst PressureWorking Pressure
inchmmmmmmMpaMpa
80050013/8”3.2±0.210.5±0.35.1>80>3.65
80050023/16”4.8±0.213±0.34.5>60>4.35

Material

Most of our rubber material imported from foreign countries( South Korea LG, Malaysia) Some bought from domestic market such as Sinopec China.

Industrial hose material

Rubber hose material

Production Process

Our Rigid Mandrel built production line can manufacture 60M length hoses.

Mandrel Built Hoes production line

Equipment

Advanced Italy VP production lines

Extruded long length hose production line

Mandrel industrial hose production line

R&D Center

Our factory has strong quality control team, we set up advanced laboratory before the mass production, we test each batch of raw material. After the production, we test each hose to guarantee a 100% qualification. Each hose tested 2 times of working pressure before packing.

Laboratory

JYM Laboratory

Warehouse

JYM Industrial hose warehouse

* For more information of JYM products, please contact us. If you would like a quotation or further information, please fill in the form below and we will reply to you within 1 working day.
